Details about  CNC 3020-800W Machine Router Milling Engraver w/ Hi-power Spindle 800W 24KRPM

CNC 3020-800W Machine Router Milling Engraver w/ Hi-power Spindle 800W 24KRPM

Seller information

99.4% Positive feedback
Visit store:
MIB Instruments

Item Information

Item condition:
New
Error icon
More than 10 available / 5 sold
Please enter a quantity of $qty_dummy$ or less Please enter a quantity of 1 Purchases are limited to $qty_dummy$ per buyer Please enter quantity of 1 or more Please enter a lower number Choose quantity that is less than $qty_dummy1$ or equal to $qty_dummy$ You can only choose quantity that is equal to $qty_dummy$
Was:
Original priceUS $1,850.99 What does this price mean?
What does this price mean?
This is the price (excluding shipping and handling fees) this seller has provided at which the seller has sold the same item, or one that is virtually identical to it, in the recent past. The "off" amount and percentage simply signifies the calculated difference between the seller-provided original price for the item and the seller's current discounted price. If you have any questions related to the pricing and/or discount offered in a particular listing, please contact the seller for that listing.
You save:
US $92.55 (5% off)
Price:
Discounted price US $1,758.44
Approximately C $1,993.98(including shipping)

136 watchers

Experienced seller
New condition
Shipping:
US $400.00 (approx. C $453.58) Expedited Int'l Shipping | See details
International items may be subject to customs processing and additional charges.  help icon for Shipping - opens a layer

Item location:
default, default, Hong Kong

Ships to:
Worldwide See exclusions
Delivery:
Please allow additional time if international delivery is subject to customs processing.
Payments:
PayPal Skrill  |  See payment information
International shipping and import charges paid to Pitney Bowes Inc. Learn More- opens in a new window or tab
Returns:
14 day money back or item exchange, buyer pays return shipping See details
Guarantee:
 | See details - opens in a new window or tab
Get the item you ordered or get your money back.
Covers your purchase price and original shipping.
eBay item number:
330751091282
Seller assumes all responsibility for this listing.
Last updated on  Aug 20, 2014 03:08:11 EDT  View all revisions

Item specifics

Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition
Country of Manufacture: China
Model: CNC3020-800 Brand: MIB INSTRUMENTS
      CNC 3020-800W CNC Machine Router Engraver with 800W, 24KRPM Spindle Motor
MIB-INSTRUMENTS







*** NEED 5 to 8 Business Day To Prepare and Testing*****
Please contact us before purchase: cnc@mib-instruments.com

We will calculate the DHL ship fee to your address.

Download Manual:

Manual for CNC3020 V2 Machine

Manual for JY5300-2 Controller Box and MHC2 Pendant


NEW RELEASED FUNCTION AT SEP 2013:

1) USE Z shape arm (16mm Aluminium), can use the whole 300mm table and  more reasonable on mechanical of the gravity weight of the motor.

2) BACK AL Panel enhance the strength

3) Front black plastic panel prevent dust and particle inside the screw part

4) Handwheel can connect with MACH3 by modbus

5) Can upgrade to 3D printer by just add a 3d extruder

6) Handwheel can command to set microstepping and current for each axis


"Can Buy It Now in my ebay store"
















MIB MINI CNC 3020 is  suitable for Industry, Technology Research, Advertising  Design, Arts Creation, Teaching, Student Project and  Hobby Purposes.

MINI CNC 3020 is a  desktop CNC machine and designed for processing  Industrial or Hobby Prototype Building, Building Model  Making, PCB, Advertising Signs, Artwork, Crafts,  Aircraft Models,RC Model parts,etc. Small size CNC can  let you work in home or office.+

1 Year Warranty for Mechanical Parts

Specification
Effective Traveling Range 200(X) X 300(Y) X80(Z) mm
Machine Dimension 410(X)*540(Y)*440(Z) mm
Working Table 240(X)*440(Y)*20(Z) mm
Frame Material  Aluminum Alloy 6061/ 6063
Driving Core X:  1605 ball screws
  Y:  1605 ball screws
  Z:  1605 ball screws
Sliding Core X: Dia. 16mm
  Y: Dia. 16mm
  Z: Dia. 12mm
Limit Switch X, Y, Z  (2 switch per axis)
Stepping Motor 57 2 phase 3A 1.8 Degree (Brand New)
Spindle Motor 800W High Speed motor (Brand New)
Principal Axis Collet ER11 / 3.175mm
Spindle Speed PWM up to 24000RPM
Repeatability  0.05mm
Max No Loading speed (X, Y, Z) 2500mm / min
Spindle Precision (Beat error) 0.01 - 0.04mm
Carving Code G code/TAB files/nc file/NCC files
PC connection Parallel Port
OS Win2000 XP (Support Mach2 Mach3)
Carving Speed Depend on material
Weight 30KG

CNC Controller
Input 110V to 220V (Switch interchange, we will  changed in factory according to your country)
Front Panel Switch  Emergency Stop
  Limit Switch Enable/Disable
  Power ON/ OFF
  Spindle Speed control
Limit Switch Connector Yes, support up to 6 limit switch
Motor Connector Paraellel Port
Motor Connector X, Y, Z, Spindle Motor
Support Control Software Mach3,EMC2 (Setting on Mach3 will be provided  after purchase)
The software is not include, it is a shareware that you can download / purchase from
their official website.
http://www.machsupport.com/
Thermal Control 24V Fan for cooling
Regulated Power Supply Spindle Motor: 800W water cooling spindle, drive by JY800 (Variable frequency Driver)
  Stepper Controller: 24V 10A 240W

Weight: 18Kg

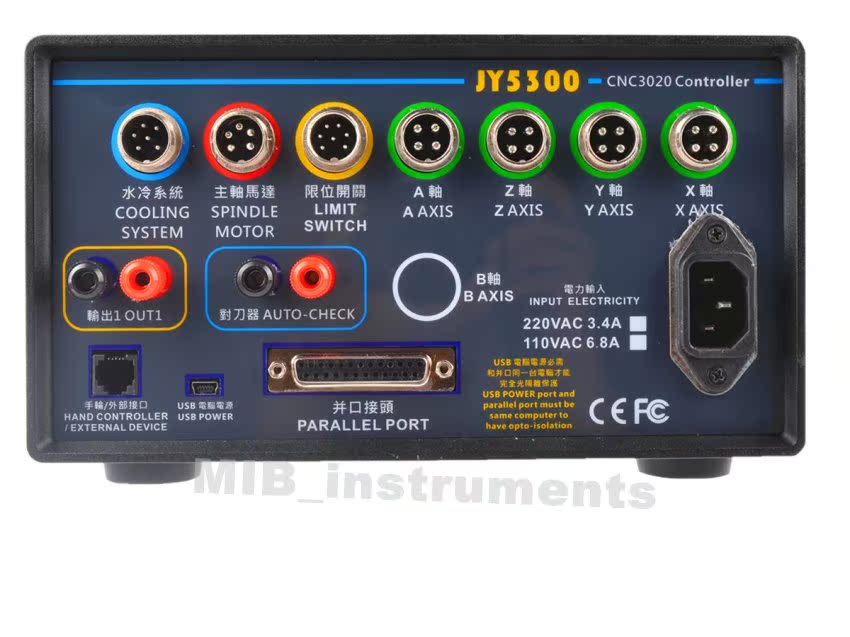

JY5300 Controller Specification

Item

Description

Parameter

Remark

Socket

Number of Slot

Stepper Driver Board

5

*Standard package with 4 Stepper Driver Board

DC Spindle Motor Driver Board

1



External Controller

1



PC Parallel Port

1



Stepper Motor Driver Board



Operating Voltage

24DCV



Maximum Current

3DCA



Micro-Stepping divider

1:8



Hand Wheel Control

Maximum Acceleration

200mm/s2

320 Steps per mm

Maximum Deceleration

200mm/s2

Maximum Speed

3500mm/min

MACH3 Computer Control

Maximum Acceleration

300 mm/s2

Maximum Deceleration

300 mm/s2

Maximum Speed

3500mm/min

Stepper Motion Memory



Number of Memory Region

4



One Region Max Record Time

30minutes



Maximum Memory Speed

3500mm/min



DC Spindle Motor Driver Board



Operating Voltage

48DCV



Maximum Current

7DCA



PWM Speed Control

0 to 100% 1KHz



Constant Speed Tolerance

5 to 15%

Tested in 300W 12000RPM DC Motor

Maximum Acceleration

~3000RPM/s

Maximum Deceleration

~3000RPM/s

Input Electricity



110/220VAC 50/60Hz



Hand Wheel LCD Display



Dot Matrix 128X64 with backlight



Hand Wheel Encoder

100 PPR



Number of Axis

4 Axis



Size

Controller Box

(LXWXH)mm

330X220X120



Weight

net weight (kg)

4.3





First Installation in 30 minutes:
1.  Locating the CNC machine on stable  desk.

2.Make sure that your computer has a on-board  parallel port output.

3. Install control software and Drive such as the  MACH 3 or EMC2 (You can search easy in Google)

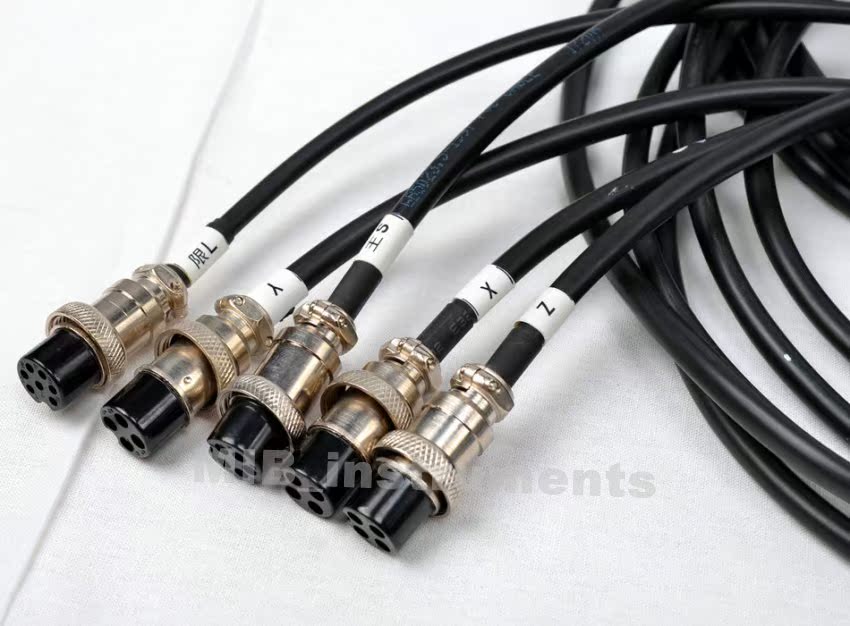

4.Connect the X, Y, Z and Limit Switch socket from  machine to CNC controller, connect power cord (We  have already set the right voltage according your  country).  Connect parallel port from

5. Follow our instruction on the MACH3 setting.

 Photobucket Photobucket Photobucket

 Photobucket PhotobucketPhotobucket

Photobucket  Photobucket  Photobucket


Package Include:

1) CNC and Controller

Handwheel is not  included, you can check below optional purchase
ItemDescriptionQty
Tool Kit Pack0.2mm V cut graver1
 0.3mm V cut  graver1
 1mm drill1
 2mm flat milling graver1
 3.175mm flat milling graver1
 Mounting Clips2
 Spindle Motor opening tools2
 Carbon brush (Spindle Motor)1
CNC RouterRouter Frame  (Sliver) with Motors1
Control Box JY5300-2 CNC controller box1
Power CordAccording to your country1
Parallel Cable 1



Optional Purchase

(Below optional Accessories are NOT INCLUDED), but you can purchase them with your order:

1) MHC-2 Hand Wheel  Controller is USD99USD/ pcs

New remote released in July2013, with more buttons, please refer to photos about.

*********  The same price but more features  *********


2)  Desktop Clamp additional cost is USD80 / pcs.

Photobucket

3) Tail - Stock, For additional USD100 only.

Photobucket Photobucket



4)

FREE OF CHARGE

Upgrade Spindle motor to 300W



YOU CAN UPGRADE TO 3D PRINTING
You may be interested in converting your cnc to 3d printer too, we can provide the kits:


Manual For CNC 3D  printer kit:

Manual for CNC To 3D Printer

Manual for MC3D 3D Extruder

Manual for M3D-H2 Heater Controller

Manual for Heatbed


First Installation in 45 minutes:
1.Assembling CNC (Separated to 2 part for shipping,  just screw up 4 screws then can be OK)

and locating the CNC machine on stable  desk.

2.Make sure that your computer has a on-board  parallel port output.

3. Install control software and Drive such as the  MACH 3 or EMC2 (You can search easy in Google)

4.Connect the X, Y, Z and Limit Switch socket from  machine to CNC controller, connect power cord (We  have already set the right voltage according your  country).  Connect parallel port from

5. Install the water cooling system and fill with coolant water.

6. Follow our instruction on the MACH3 setting.


PACKAGE INCLUDED:

1) CNC 3020 - 800W machine, (the table clamp on the photo is not included)

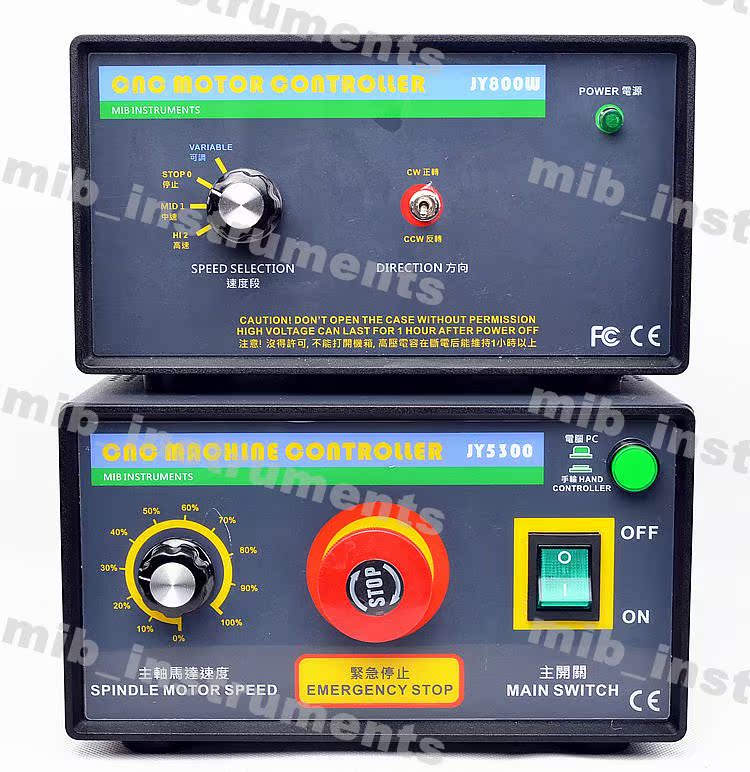

2) 4-axis contol box JY5300, (the PC and the LCD on the photo are not included)

3) Variable frequency Drive Box JY800W.

4) Std accessory - 5pcs drill bits and wrench
