CNC3020 CNC Router Engraver Milling Machine - New Powerful Spindle 300W Motor

CNC3020 CNC Router Engraver Milling Machine - New Powerful Spindle 300W Motor

　

　






　

　

　

All components are brand new.

*BRAND NEW 4axis CNC  ROUTER

*NEW SPINDLE & STEPPER  MOTOR

*WITH 6 LIMIT SWITCHES  INSTALLED

*80MM Z Axis, SUITABLE  FOR LARGE OBJECT

*3A HIGH CURRENT  STEPPING MOTOR, HIGH SPEED AND STABILITY

MIB MINI CNC 3020  is  suitable for Industry, Technology Research, Advertising  Design, Arts  Creation, Teaching, Student Project and  Hobby Purposes.

MINI CNC 3020  is a  desktop CNC machine and designd for processing  Industrial or Hobby  Prototype Building, Building Model

  Making, PCB, Adverstising Signs, Artwork,  Crafts,  Aircraft Models,RC Model parts,etc. Small size CNC can  let you work in  home or office.+

1 Year Warranty for Mechanical Parts

　



Specification
Effective Travelling Range	200(X) X 300(Y) X80(Z) mm
Machine Dimension	410(X)*540(Y)*440(Z) mm
Working Table	240(X)*440(Y)*20(Z) mm
Frame Material	Aluminum Alloy 6061/ 6063
Driving Core	X:  1605    ball screws
	Y:  1605    ball screws
	Z:  1605    ball screws
Sliding Core	X: Dia. 16mm
	Y: Dia. 16mm
	Z: Dia. 12mm
Limit Switch	X, Y, Z  (2 switch per axis)
Stepping Motor	57 2 phase 3A 1.8 Degree (Brand New)
Spindle Motor	Brand New DC Motor -  Torque:  230mN.m Voltage: 12 - 48 Volt DC.  Speed: 3000 - 12000 RPM, Power: 300W Diameter:  52mm Jaw head len:  48mm Jaw head dia: 16mm Motor length: 175mm Weight:  1.0Kg With fan cooling.
Principal Axis Collet	ER11 / 3.175mm
Spindle Speed	PWM up to 3000-13000 RPM
Repeatability	0.05mm
Max No Loading speed (X, Y, Z)	2500mm / min
Spindle Precision (Beat error)	0.01 - 0.04mm
Carving Code	G code/TAB files/nc file/NCC files
PC connection	Parallel Port
OS	Win2000 XP (Support Mach2 Mach3)
Carving Speed	Depend on material
Weight	26KG
CNC Controller
Input	110V to 220V (Switch interchange, we will  changed in factory according to your country)
Front Panel Switch	Emergency Stop
	Limit Switch Enable/Disable
	Power ON/ OFF
	Spindle Speed control
Limit Switch Connector	Yes, support up to 6 limit switches
Motor Connector	Paraellel Port
Motor Connector	X, Y, Z,S1(4th axis) Spindle Motor
Support Control Software	Mach3,EMC2 (Setting on Mach will be provided  after purchase)
Thermal Control	24V Fan for cooling
Regulated Power Supply	Spindle Motor: 48V 7A 350W
	Stepper Controller: 24V 10A 240W

　



　

4th Axis Specification
3 Claw middle to bottom	65mm
Machine Dimension	Height 105mm X Width 175mm
3 fingers Claw Chuck Size	80mm Diameter 3 fingers
Frame Material	Aluminum Alloy 6061/ 6063
Bearing	2 bearing type
Centric Rotational tolerence	~0.1mm
Stepper Motor	3A 57type 1.8 Degree Stepper Motor (Brand New)
Pulley Belt	Ratio: 1:6, 12 teeth to 72 teeh
Weight	8KG

　

First Installation in 30 minutes:

1.Assembling  CNC (Separated to 2 part for shipping,  just screw up 4 screws then can be  OK)

and locating the CNC machine on stable   desk.

2.Make sure  that your computer has a on-board  parallel port output.

3. Install  control software and Drive such as the  MACH 3 or EMC2 (You can search easy  in Google)

4.Connect the  X, Y, Z and Limit Switch socket from  machine to CNC controller, connect  power cord (We  have already set the right voltage according your   country).  Connect parallel port from

5. Follow our  instruction on the MACH3 setting.

　

Package Include:

Item	Description	Qty
Rotational Claw Set	Include one 3A Stepper Motor, 80mm 3 Claw Chuck, Holding  Aluminum frame,  Belt, 80cm long cable with socket  (suitable for MIB CNC3020 control box)	1
Spare Belt	Spare Belt	1
Mounting Screw	Mounting Screw Set (Suitable for table of CNC3020 or  similar)	3
Claw Chuck Accessory Set	Spare claw (one finger)	3
	Claw Chuck Screwdriver	1

CNC Part with Controller:

Item	Description	Qty
Tool Kit Pack	0.2mm V cut graver	1
	0.3mm V cut  graver	1
	1mm drill	1
	2mm flat milling graver	1
	3.175mm flat milling graver	1
	Mounting Clips	2
	Spindle Motor opening tools	2
	Carbon brush (Spindle Motor)	1
CNC Router	Router Frame with Motors	1
Control Box	4th Axis Type	1
Power Cord	According to your country	1
Parallel Cable		1

====================================================================================================

*** Optional Purchase *** (Below optional Accessories are NOT INCLUDED), but you can purchase them with your order:　

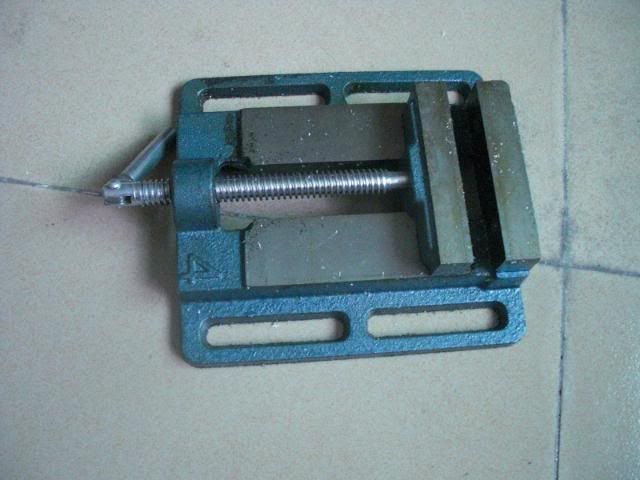

1) Below Clamping Tool is not included, you can contact us if you need to purchase it. The additional cost is USD80 / pc.

2) Tail - Stock for 4th Axis available now! For additional USD100 only.



3) Upgrade Spindle motor to 300W, Included Free.

Brand New DC Motor -  Torque:  230mN.m Voltage: 12 - 48 Volt DC.  Speed: 3000 - 12000 RPM, Power: 300W Diameter:  52mm Jaw head len:  48mm Jaw head dia: 16mm Motor length: 175mm Weight:  1.0Kg

　　

FAQ:

1) Does the machine come with software?

No, the package does not include software. This machine is compatible to Mach3 and EMC2 software, they are shareware and could be downloaded from their official website. So we do not ship with software. Hope you understand that. There are also a lot of Mach3 and EMC2 tutorials from the web. Please google them or check youtube for online tutorial.

2) Can this machine mill steel and how thick can it mill?

Yes, it can mill steel but not very efficiently. User can set mill step for each run, say 0.2mm in the software to experience the effect. Milling steel is possible but may not be efficient with the default motor.

We have a high power (water cool) motor with 800W power, 24000RPM. We can custom made for buyer for additional cost, please send email to us.

3) What is the power of the spindle motor?

The spindle motor is 200W, it can be used to work on plastic, wood, aluminium and other soft materials. If you need more powerful spindle motor, please contact us by email : Contact us : cnc@mib-instruments.com

4) How quick we ship the parcel after your purchase?

After a buyer has paid for the CNC, the order will go to our factory. Before packaging, we will run 4 hours burn in test and then pack all accessories. The next day, we will send the parcel to our forwarder to get all the paperwork done. On the 4th day, we will have a shipper's reference number then the DHL waybill number will be published on the 5th day. Please understand that before the parcel is about 40Kg, so it take more time to prepare the shipment.

5) Warranty and After Sales Service (ASS)

We provide 12 months warranty on functionality of all parts. We design and manufacturer the CNC machine, we keep close contact with all customers and collect their valuable feedback after sale. You are welcome send questions / comments to us anytime. We will try our best to solve any question regarding the CNC machine.

6) Contact us : cnc@mib-instruments.com

========================== Recent Customer Feedback =============================

===  Below are feedback in May - June 2012  ===

	Could have quick and accurate response! Thank you!!	Buyer   rio_tnk ( 23)	2012-07-26 15:19
	4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck （編號：390390623824）	US $1,250.00

	Great product! Extremely fast shiping! relatively well packed, very reccomended	Buyer:  abr90robb ( 26)	Jul-29-12 19:55
	4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck (#390390623824)	US $1,150.00 Best Offer Price was Accepted

	Very well packed, works well.	Buyer :  beyelka ( 115)	2012-07-08 11:15
	NEW CNC 3020 ROUTER ENGRAVER DRILLING MILLING MACHINE, BLACK ANODIZED FRAME （編號：390421714429）

	Good little machine, GREAT customer service! Thanks. AAAAA +++++	Buyer ：  mollinst ( 275)	2012-06-13 07:19
	4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck （編號：390390623824）	US $1,150.00 講價金額已被接受	查看物品

	Well packed, no damage. Everything works only negative needed slight alighnment	Buyer:  jayx2 ( 1302)	Jun-10-12 09:06
	CNC 30x20cm workable range 4-Axis (#320896534465)	US $1,150.00	View Item

	thank you! great machine!	Buyer:  noriyasu ( 164)	Jun-07-12 05:45
	CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE (#330606445911)	US $869.00 Best Offer Price was Accepted	View Item

	Excellent communication and handling of this transaction. - Five Stars!	Buyer:  colonelmcqueen ( 836)	Jun-07-12 01:41
	4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck (#390390623824)	US $1,150.00 Best Offer Price was Accepted	View Item

	All is fine. Thanks a lot! But it is necessary to pack better.	Buyer:  alexvrubel ( 6 )	May-27-12 12:36
	4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck (#390390623824)	US $1,150.00	View Item

	good seller	Buyer:  goodfella100 ( 477)	May-07-12 18:13
	4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck (#390390623824)	US $1,150.00	View Item

	A+ Fast Shipping	Buyer:  mr.skinny ( 449)	May-03-12 19:30
	4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck (#390390623824)	US $1,150.00	View Item

===  Below are feedback in April 2012 and before ===

Fast shipping, great product, great seller. Recomended. Buyer: gkolotelo ( 78) Apr-08-12 18:53

4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck (#390390623824)

Great people..very helpfull..great cnc..works well...ultra fast shipping AAAA+++ Buyer: martyondrums ( 251) Mar-29-12 10:06
4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck (#390390623824)

Good assembly. He received two parcels up to 27 kg. For Russia, actually :) Buyer: kuznec65 ( 3 ) Mar-27-12 02:59
NEW CNC 3020 ROUTER ENGRAVER DRILLING MILLING MACHINE (#330604525731) US $699.00

5STARS!!! Exceeding expectations!! MIB rules!! Buyer: jnjliving ( 74) Mar-22-12 18:50
4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck (#390390623824)

Fast shipping. Arrived early. Looks good! Thanks Buyer: krgear ( 44) Mar-20-12 21:08
4 Axis CNC 3020 ROUTER ENGRAVER DRILLING / MILLING MACHINE , With Claw Chuck (#390390623824)

...

For more, please check our feedback record.
