Note: Canon camera, lenses & battery are not included in the package.
Introduction:
Brand New! Never Used! High Quality! A perfect helper for photographing.

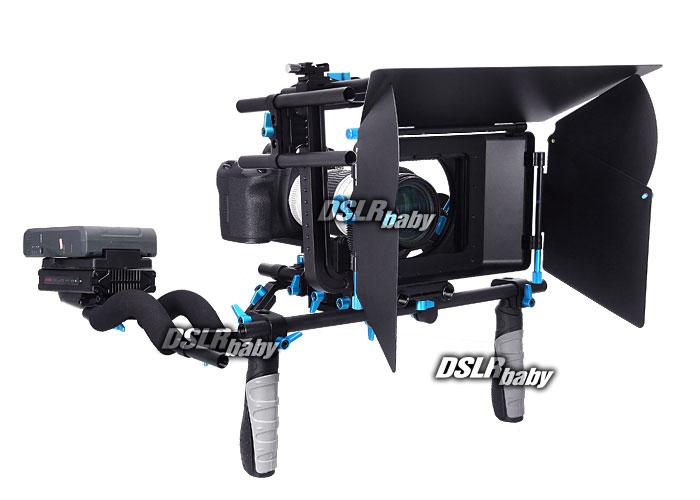

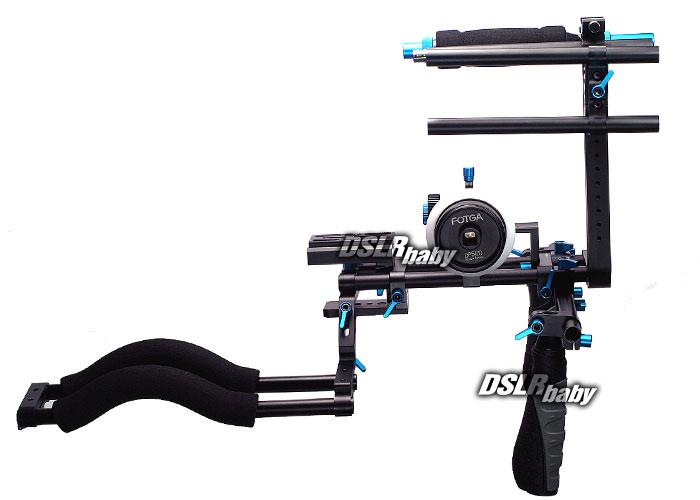

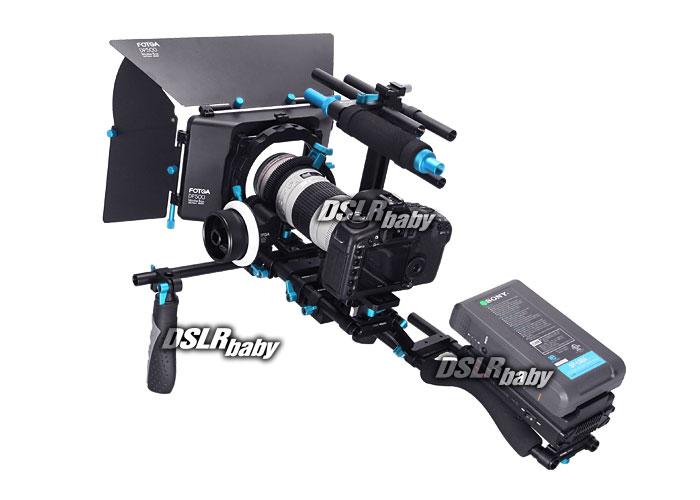

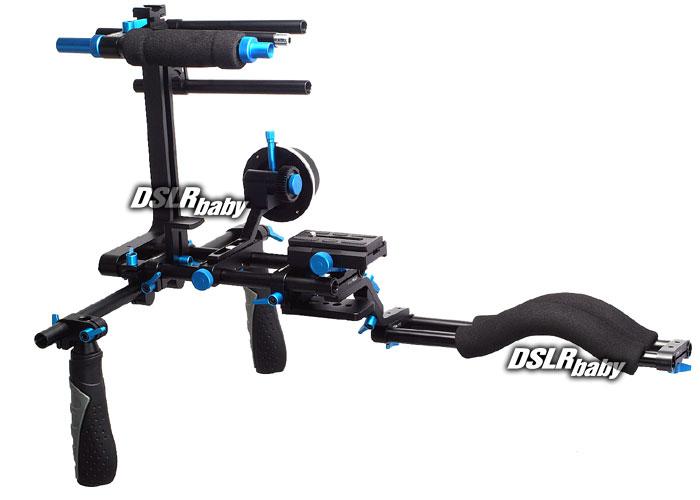

This kit is composed of follow focus,15mm rail rod, handle bracket, hand grip support, shoulder support, matte box, BP power supply. This set is especially desinged for DSLR/DV/HDV by providing maximum flexibility for outdoor and indoor shootings. It is portable and easy to take.

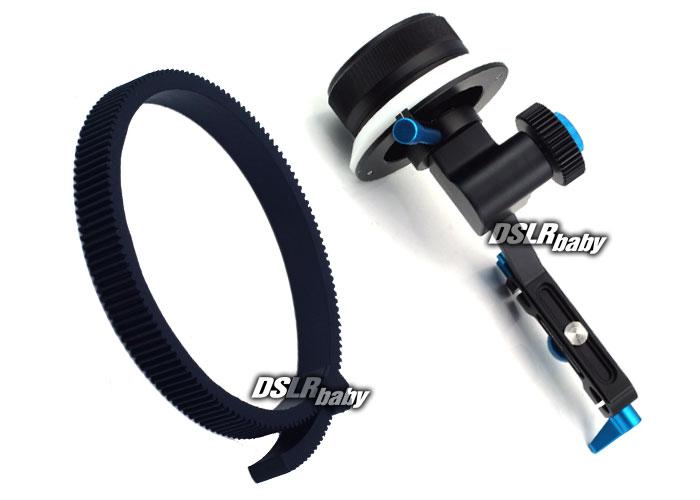

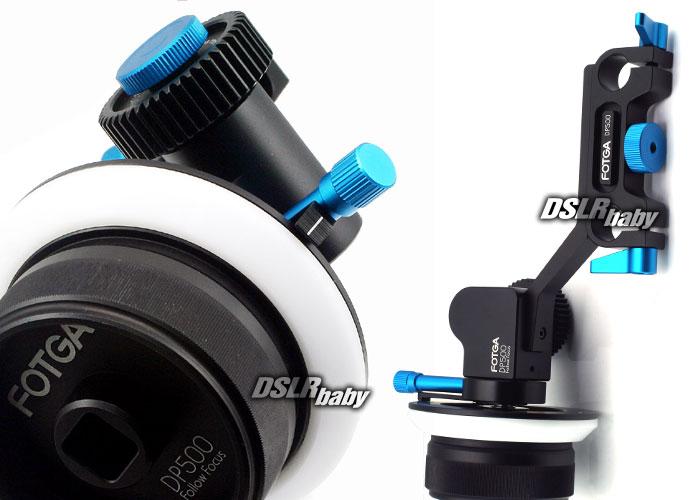

DSLR Follow Focus is a focus control mechanism, used in film and video cameras. It is not only strictly necessary but also ergonomic; in other words it does not contribute to the basic functionality of a camera, instead it allows the operator to be more efficient and precise. It is usually operated by a focus puller but some camera operators prefer to pull their own focus .
DSLR Follow Focus works through a set of gears attached to teeth on the focus ring of the lens. These gears feed to a wheel which, when turned by a focus puller, will spin the teeth and thus the ring on the lens.
- Material : Completely Metal (Gear part is made of brass and steel,other part of aluminum)
- Gear drive can be mounted from both side.(Works for both right-handed and left handed)
- This set includes flexible gear belt, used with any zoom or prime lenses with a wide range of lens diamters(any size from 46 to 110mm)
- Adjustable locking systems
- Mounts onto 15 mm Rod Support (60mm center to center difference).
- Rail Distance: 60cm
- Rail Diameter : 15mm
- Gear MOD: Industry Standard 0.8
- Compatible with all DSLR cameras, video cameras & industry standard 15 mm Rods
- Net Weight: 495g

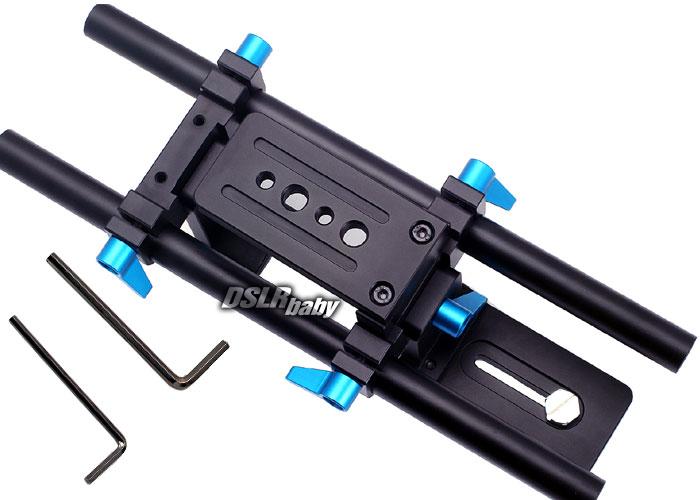

15mm Standard rail rod support system is with Light Weight Designed, allowing a camera operator to work indivertibly and to be more precise and efficient.
Rail Rod is an essential requisite of Follow Focus. Quick Release Plate fits to most cameras and prevents your camera from rotating or moving on the plate. The Plate is designed to allow access to all cameras controls and functions without removing the plate; to provide maximum contact area to the bottom of the camera, so as to increase stability and help to minimize flexing of the camera body.
Make improvement on the lens support. And it will bring little damage to the lens during usage.
- Material: completely metal
- Rail Diameter: 15mm
- Rail Distance: 60mm
- Rail Length: 250mm
Designed for most DV cameras with wide angle lenses.

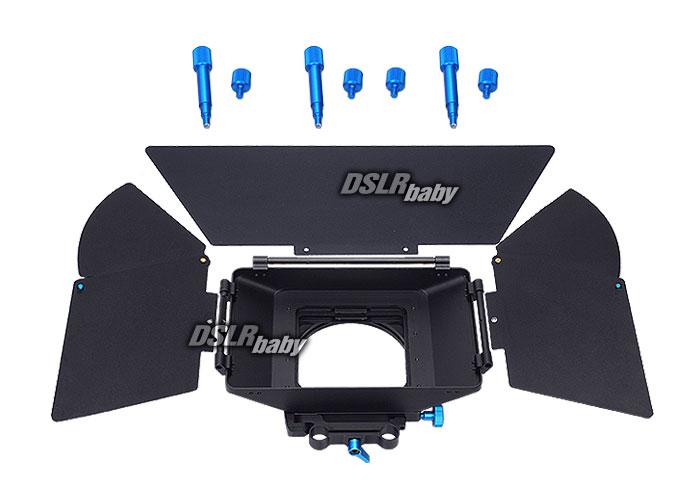

Matte box is a device used on the end of a lens to block the sun or other light source to prevent glare, which functions as that of lens hood. Besides, matte box is also be used to hold glass or plastic filters in place in front of the lens.
It works with standard 15mm rail rod support systems, and fits lens from 43mm to 77mm sizes.(others do not fit.)
-
This Matte Box could be adjusted the height (up to 45mm) according to the lens of camera on the rail rod system
-
Top and flank barn door are easily adjustable the angle to meet you; and removable, convenient to carry
- Made of mostly plastic, and anodized black metal
- Color: Black with blue knob
- For Rail Dia: 15mm
- For Rail Center-to-Center distance: 60mm
- Weight: 255g
Light Weight Designed & Easy to Install & Convenient to use.

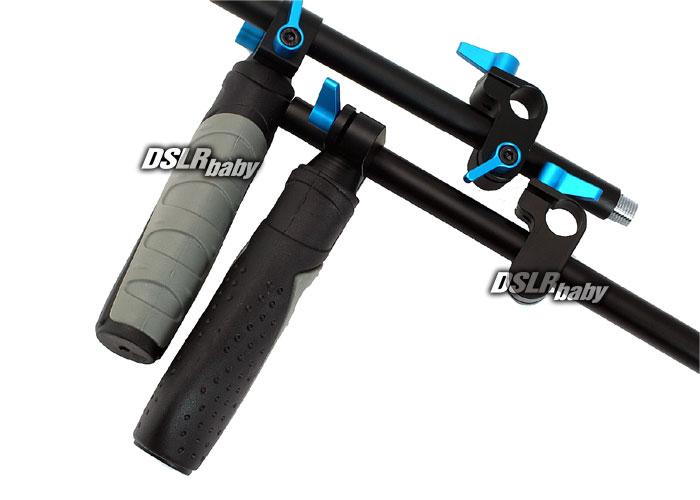

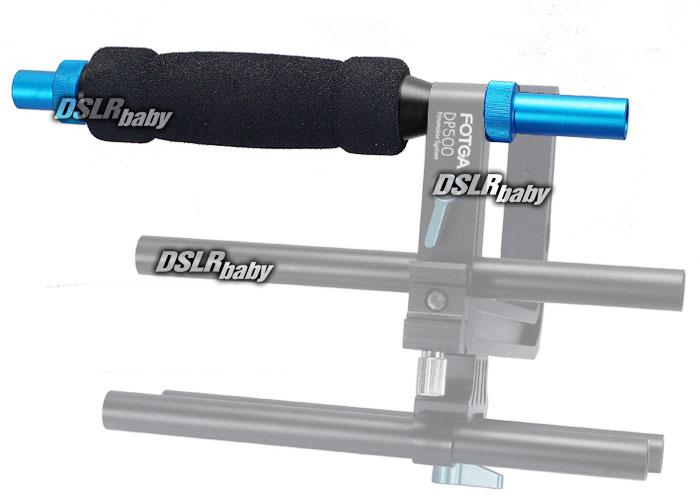

This hand grip enables us to shoot flexibly but steadily. A good help in long shooting.
- Material: mostly metal & some rubber
- Rail Diameter: 15mm
- Rail Distance: 60mm
- Rail Length: 400mm (consists of two parts)
- Screw Head: 1/4''
- Weigt: 475g

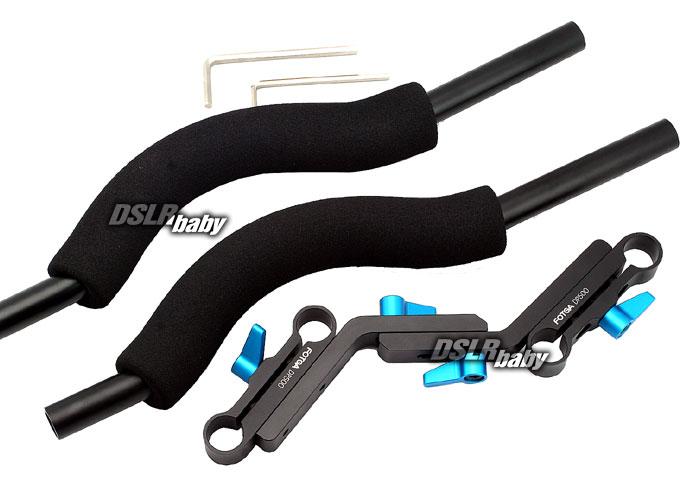

- Shoulder Mount Support Pad
Light Weight Designed & Easy to Install & Convenient to use
This hand grip enables us to shoot flexibly but steadily.A good help in
long shooting.Humanism design reduces pressure on our shoulder.
- Material: mostly metal
- Rail Diameter: 15mm
- Rail Distance: 60mm
- Rail Length: 300mm
- Weigt: about 530g with package

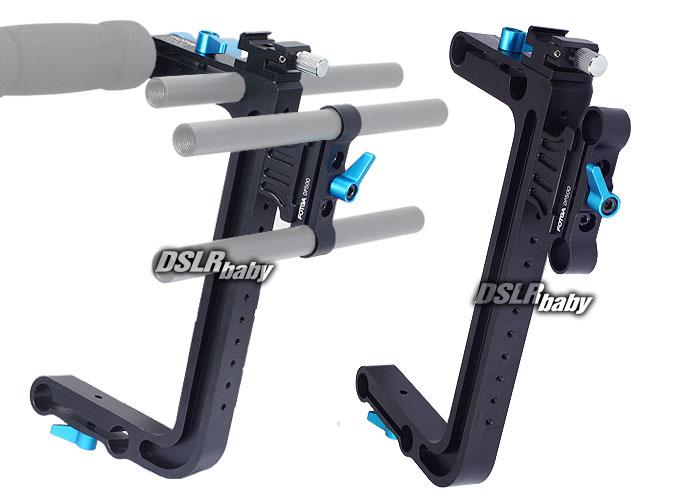

Designed according to ergonomics. It is very sturdy with total metal body.
- With standard hot shoe mount on the upside.You can mount your microphone, off-camera flash or any other accessories with standard hot shoe.
- There are many holes by the side of the bracket for you to install the attached clamp in the place you want.
- It comes with 3pcs rods and a handle with Sponge.
- It is completely made of metal.Very Sturdy.
- Compatible with industry stand 15mm rods
- One blue screw can lock 2pcs 15mm rod.
- rod distance:60cm
- rod diameter: 15mm
- Rod length: 20mm
- Height of the main bracket:Approx.23cm
- Net weight: 600g
- BP battery power supply with V mount for DSLR HDMI with USB socket
Specially designed for Supplying power to DSLR,HDMI,iphone,ipad,etc. It brings convenience to your work.
It can work with standard Sony BP series battery with V mount.
- 3 output sockets with different output voltage: 5V,7.2V,12V.
With different cables (included), they serve for differet devlice:
5V output for HDMI device;
7.2V for camera(only cameras that use LP-E6 battery);
12V for display.
- 1 USB socket: you can charge your apple products on this power supply by using a USB cable.
- It comes with V mount which makes it able to work together with BP battery.
- There is power switch and indicator.
- Multi-direction adjustable mount clamp in the downside makes it be able to mount on standard 15mm rod rail.
- Net weight of the main body is 500g.
- For DSLR,HDMI,apple series products.
Package Including:
-
1 x Follow focus
-
1 x matching gear belt x1 (adjustable from 46mm-110mm)
-
1 x DP500 holder-formed Standard set main body
-
4 x 10" (250mm) main rail rod
-
2 x Slide block for attacking two railrod
-
1 x Lens Support
-
1 x Tripod plate to mount rail rod on tripod
-
1 x Mounting block for attaching camera plate and tripod plate
-
6 x Tightening screws
-
1 x 1/4"screw
-
1 x Screw for fixing camera
-
2 x Black screw for attaching camera plate and mountingblock
-
1 x Wrench for installing screws
-
1 x DP500 Handle grip rod
-
1 x DP500 shoulder support mount
-
1 x Handle bracket
-
1 x Matte Box
-
1 x Top Flag
-
2 x Side Flags
-
4 x Donuts for different lens sizes (103mm,76mm,64mm,51mm)
-
2 x 4"x4" Filter Holder
-
1 x 15mm Rod Connector
-
Original manufacturing package
